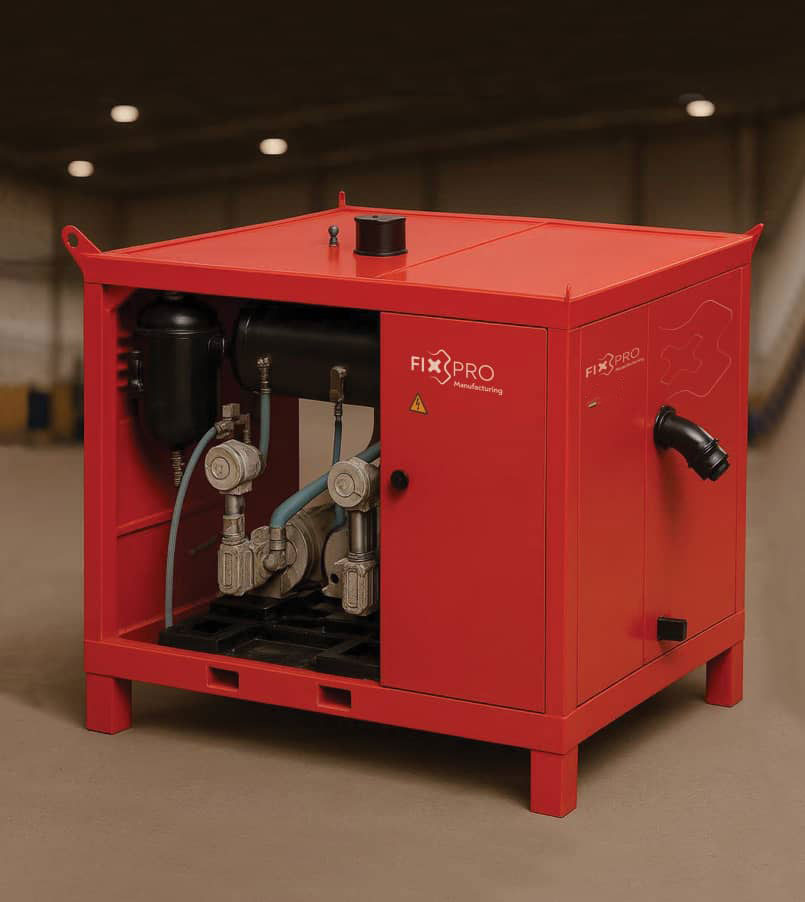

Industrial Cyclevac Unit
FixPro’s Cyclevac series revolutionizes the way industries approach liquid and sludge transfer processes. Specifically designed for applications that don’t require continuous suction and discharge, this industrial liquid vacuum system features a unique, cyclic approach for collection and discharge that is efficient, reliable, and cost saving.
In a wide range of applications, whether industrial wastewater management, clean-up of construction sites, or oil sludge removal, this system provides you with a cost-effective alternative to a continuous system without sacrificing performance when you need it.
Key Features of Cyclevac
The Cyclevac, liquid transfer vacuum system is constructed for the industrial environment. Along with superior suction capacity, this system features easy to use options.
When efficiency, control, and durability are the most important factors, the Cyclevac is designed to perform.
Why Selecting the FixPro Cyclevac System is the Best Option?
Selecting this system is selecting for the values of your project’s performance & cost targets. Here’s why industry relies on using Cyclevac:
- Cost-Effective for Intermittent Operations
- Suitable for short and medium term projects that do not operate 24/7
- Reduced Energy Consumption
- The suction and discharge that's cyclical in nature also means lower energy use than continuous vacuum systems
- Lower Maintenance
- With fewer moving pieces and reduced operational strain, the parts last longer, logically
- Optimized for Controlled Operations
- Works better for tasks in liquid handling instead of continuous suction
- Needing higher hose diameter compared to Vactran
- Compact and portable
- Stationary and trailer mounted versions available, as well as trailer mounted versions if desired.
This system is the perfect balance of performance, cost, and sustainability, everything FixPro strives for in engineered performance.
Cyclevac Industrial Vacuum System
Technical Summary
| Specification | Related option | Details |
|---|---|---|
Engine type |
Engine |
Diesel |
Engine power |
Engine |
62.0 |
Engine make |
Engine |
Cummins |
Fuel tank |
Engine |
152/16.7 |
Vacuum rate |
Pumps |
870 |
Blow pressure |
Pumps |
1000 |
Simultaneous operation |
Performance |
no |
Performance |
Performance |
180 m3/h |
Suction depth (Close) |
Performance |
7.5 m |
Suction depth (open) |
Performance |
50 m |
Blow length |
Performance |
300 m |
Standard hose size |
Accessories |
100 / 4.0 mm/inch |
Secondary shut-off valve |
Accessories |
Not included |
Weight |
Body |
2.900 kg |
Dimensions |
Body |
264 x 211 x 232 cm |
Warranty |
Body |
2 years |
Applications of the Cyclevac Liquid and Sludge Transfer System
This system has applications in multiple industries for safely and effectively transferring liquid and sludge:
- Wastewater Treatment Plants: Cleaning tanks and pits
- Oil & Gas: Recovery of drilling mud, crude oil, and other heavy fluids.
- Emergency Spills: Rapid deployment for liquid containment and removal.
- Construction
- Municipalities
- Shipyards: Discharging the water from ballast tanks or ship compartments
Cyclevac has the ability to transfer any liquid where controlled, meaningful, and efficient liquid transfer is needed.
Cyclevac Technology
Efficient Cyclic Suction and Discharge
The cyclical suction and discharge process means your unit is only going to do what you need it to, creating an extremely efficient system while using less energy. This is how it works:
Suction
The introduced system will pull the liquid (or sludge) from the site and deposit it into the cycle tank using powerful negative pressure.
Automatic Switch
When full, the sensor will automatically change things up and go into discharge.
Discharge
The liquid is now expelled all at once and ready to pull. So, the tank will be pressurised and liquid will be discharged

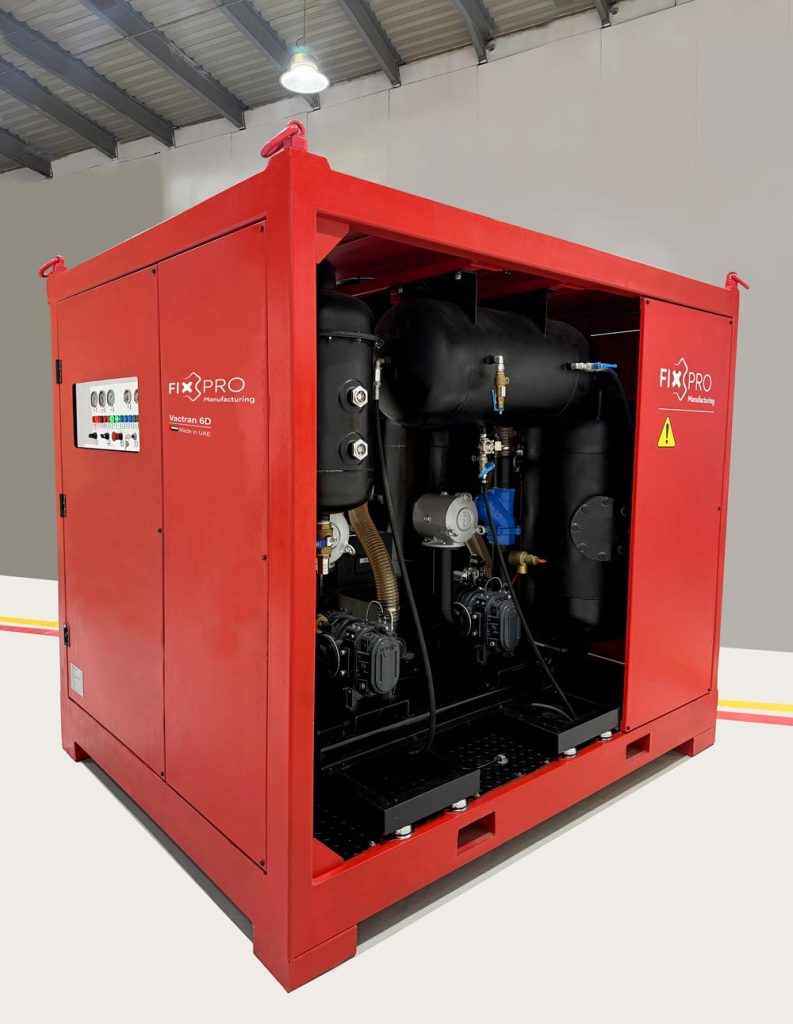

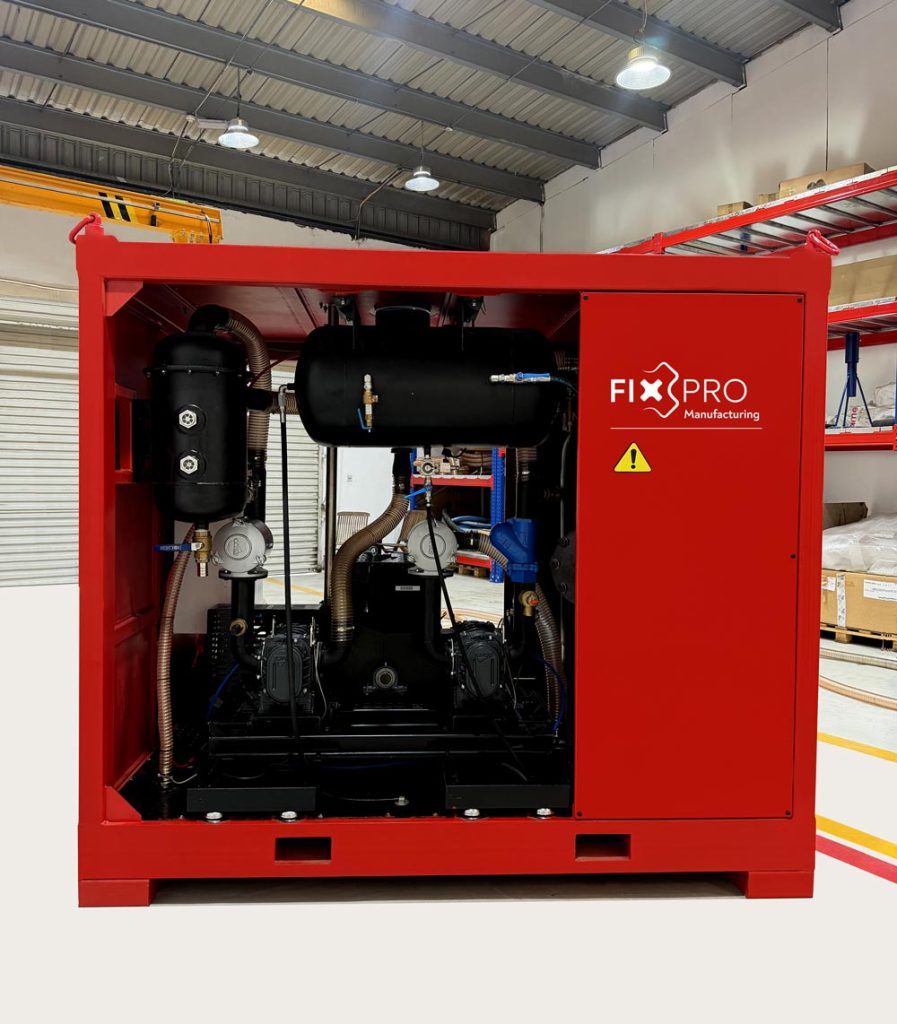

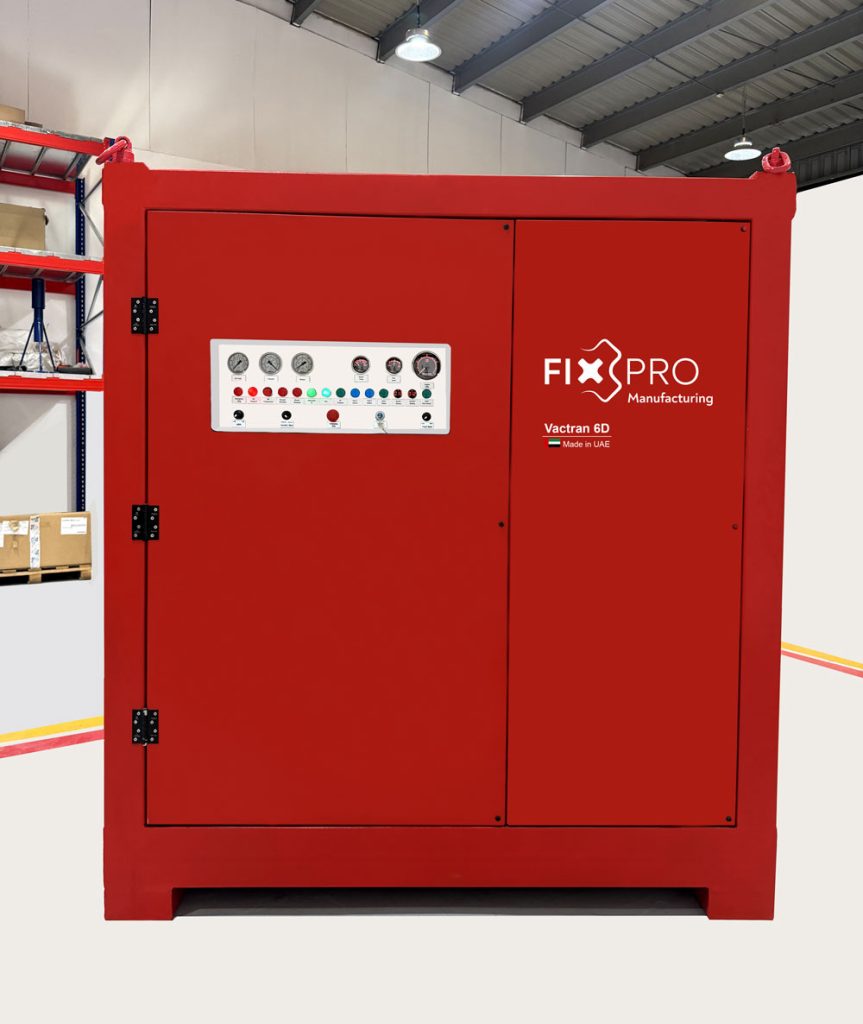

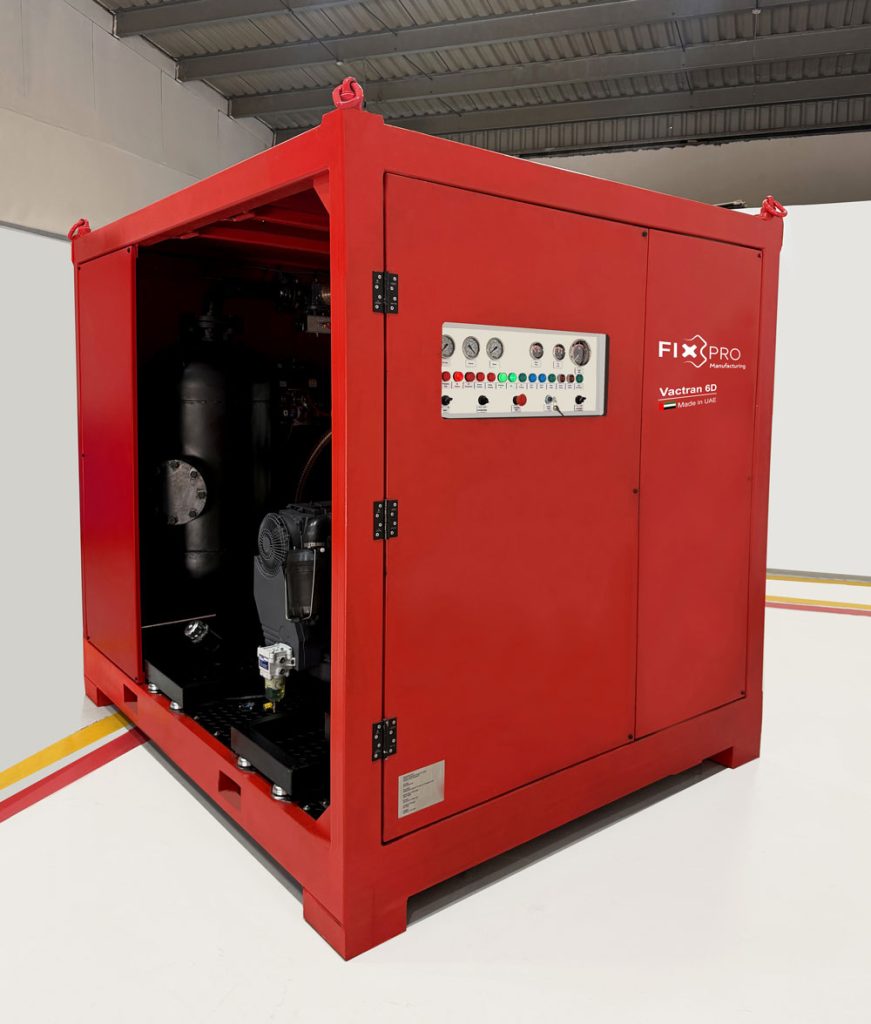

Cyclevac versus Vactran:
Which Vacuum System to Choose for Your Project
| Feature | Cyclevac | Vactran |
|---|---|---|
Operation Type |
Cyclical suction & discharge |
Continuous suction & discharge |
Best For |
Intermittent or controlled projects |
Continuous industrial operations |
Energy Efficiency |
High |
moderate |
Applications |
Wastewater, construction, spills |
Heavy industry, long-term pumping |
Generally, for continuous heavy-duty suction, consider Vactran.
Cyclevac Models Available
for Sale or Short-Term Rental
FixPro offers several models of Cyclevac to meet different operational needs and budgets:
- Cyclevac 10H: An advanced vacuum and blow system for long distance liquid transfer
Maintenance, Repair, and Rental Services of the Cyclevac Units
With FixPro, your investment is fully supported. We provide Technical Support & Training for operational teams. FixPro’s service network ensures that your liquid vacuum equipment operates with the least possible downtime. It can be a vacuum system for intermittent use.
Explore Industrial Vacuum Solutions Across Applications
Discover how our industrial vacuum systems solve challenges in diverse industries.
Safe & continuous industrial waste extraction
Industrial Waste Removal with Vacuum Systems
Reliable vacuum solutions for sewage maintenance
Industrial Sewage Cleaning with Vacuum Systems
Efficient flood and stormwater cleanup
Flood & Storm Drain Cleaning Services
Ask for Expert Consultation
Looking for the right industrial liquid vacuum system for your project? Our engineers can help in selecting the right model and configuration for your particular application.
Find the Right Cyclevac Model for Your Application
Every project has its demands. Share a few details with FixPro, and its technical experts will lead you to the best Cyclevac solution, customizable for your flow rate, hose diameter, and operational cycle needs.
Do you have any question?
The Cyclevac is designed for low-maintenance operation. Routine cleaning of filters and periodic inspection of hoses and valves usually suffice.
Yes, Cyclevac series units can handle water, oil, sludge, drilling mud, and emulsions. There are special filter options for applications with lots of oil.
Absolutely, since FixPro offers customized Cyclevac configurations for singular industry needs, be it resistance to chemicals, portability, or extended suction depth.
The time for delivery or rental depends on model availability and the level of customization. Standard units are generally available within 2–3 weeks; custom builds take a little longer. In urgent projects, FixPro’s rental fleet can be deployed quickly.
Yes, every purchase or rental comes with operational training and technical support so your team operates a Cyclevac system safely and efficiently.
Yes, the Cyclevac can connect either into existing pipeline networks or into an automated fluid handling system with custom control solutions from FixPro.
