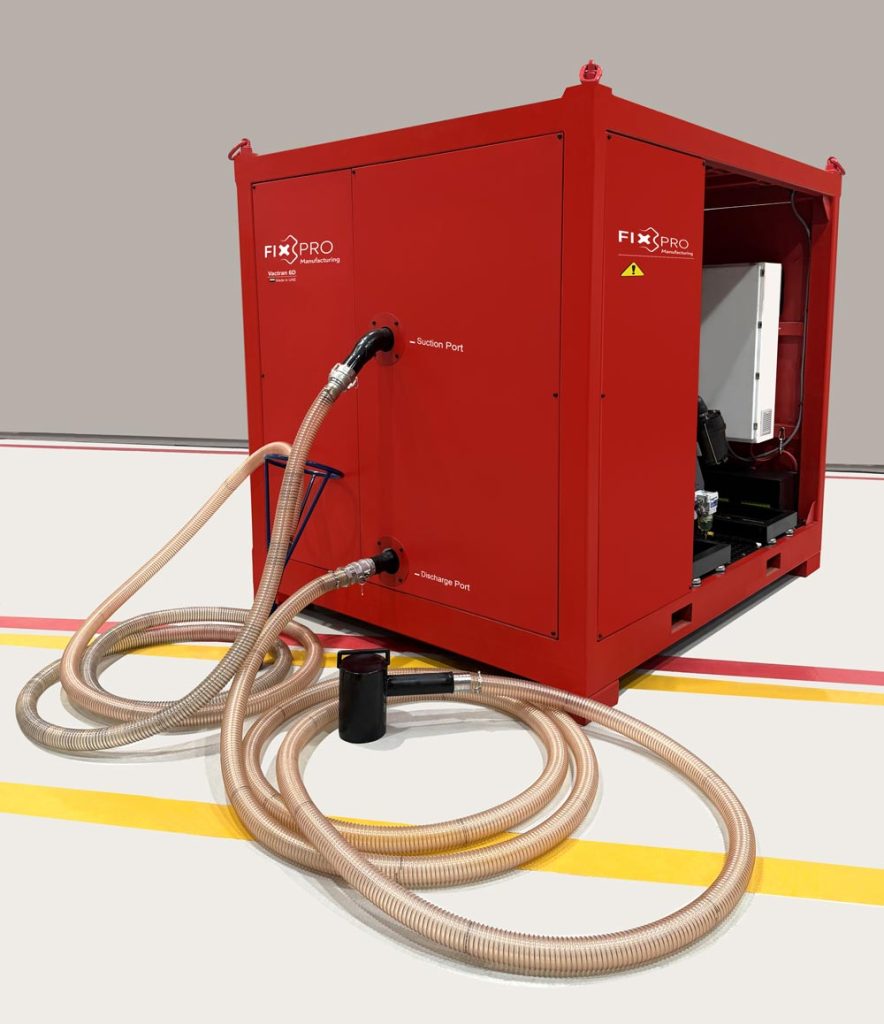

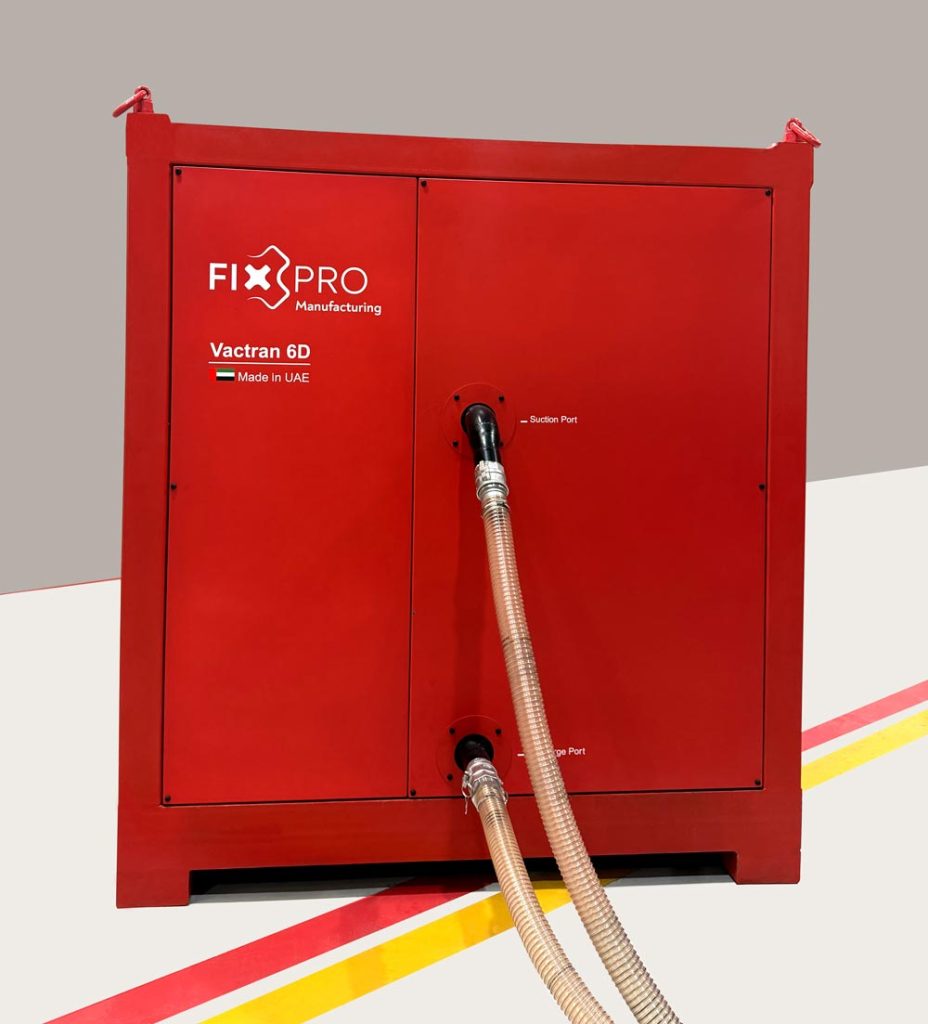

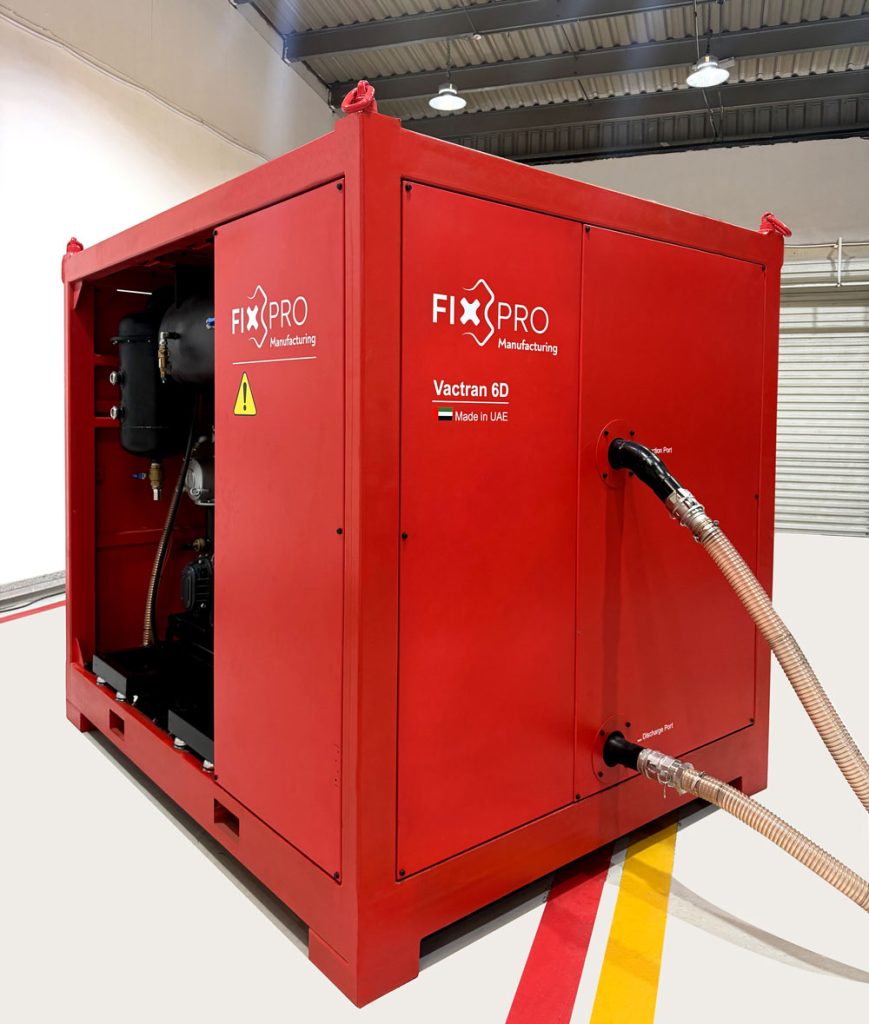

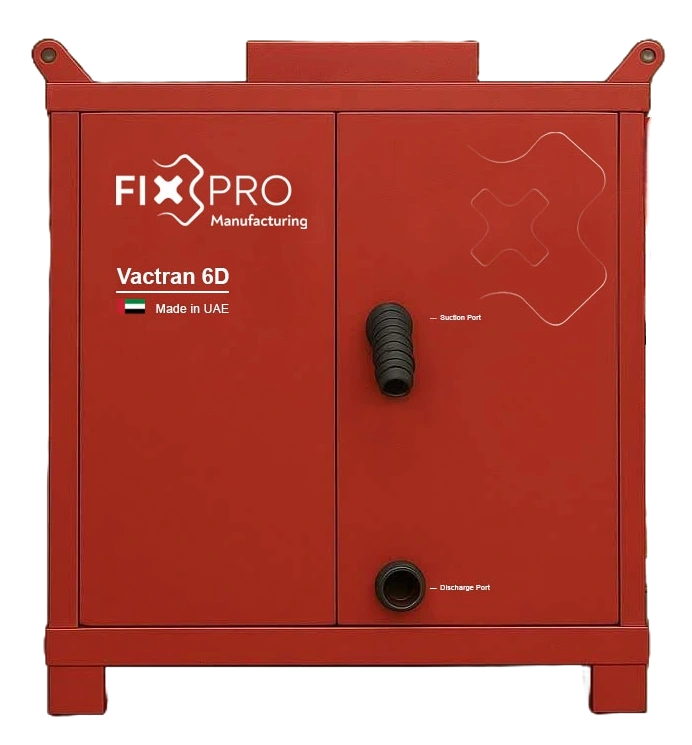

FixPro Vactran Industrial Liquid Vacuum System
Introducing Vactran, the newest product from FixPro Manufacturing, a recognized leader in industrial vacuum equipment. The FixPro Vactran series represents an advanced type of industrial liquid vacuum system that possesses continuous suction and discharge capability. Designed for high-volume liquid and sludge removal systems, these units are ideal for severe work site conditions and exhibit strong performance, suction power, and reliability in even the most demanding work environments.
Whether you are working at a construction site, in an oil & gas facility, or in a municipal setting, the Vactran series is built for non-stop work and no downtime, even on the toughest job sites.
Vactran Industrial Vacuum Unit Features
Reasons to Consider the FixPro Vactran System?
Vactran Industrial Vacuum Equipment
Specifications
| Model Number | Vactran06 | Vactran13 | Vactran43 | |
|---|---|---|---|---|
Suction Pump Power (KW) |
5.5 |
7.5 |
33.0 | |
Blow Pump Power (KW) |
– |
5.5 |
9.5 | |

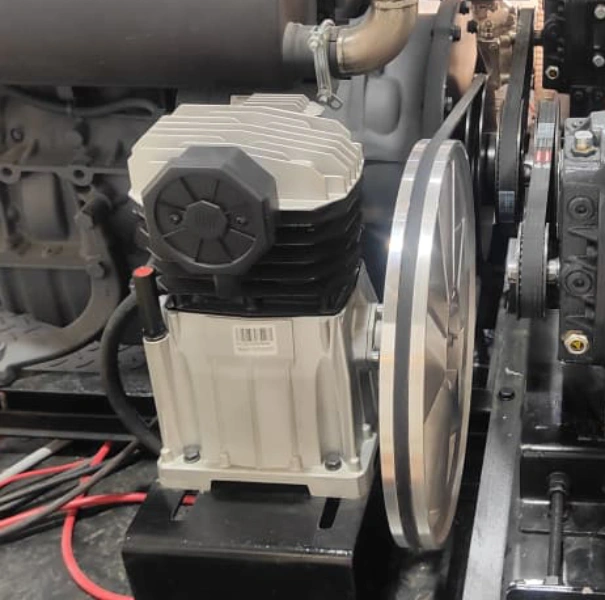

Air Compressor Power (KW) |
1.5 |
3 |
3 | |

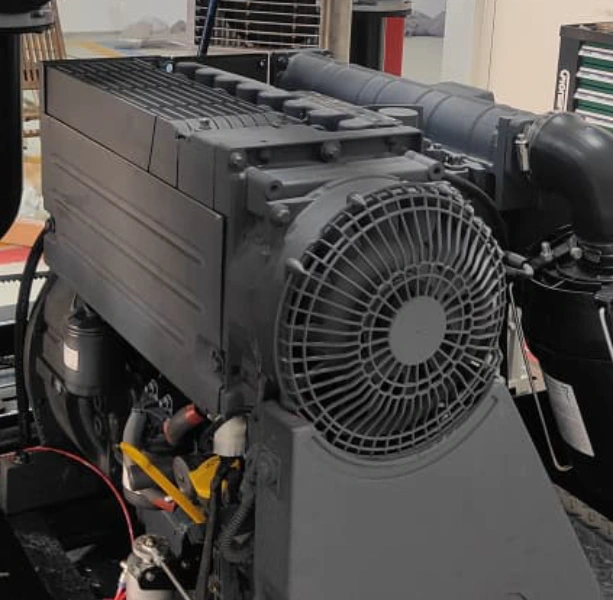

Power Source |
Electric |
Electric |
Diesel | |
Electrical Connection (V, Hz, A) |
400, 50, 10 |
400, 50, 28 |
– | |
Cable Length (m) / Fuel Tank (L) |
10m |
10m |
80L | |
Discharge Rate (Ipm) |
50 |
80 |
250 | |
Vacuum Rate (%) |
31% |
70% |
92% | |
Max. Suction Depth (m) |
2 |
6 |
8 | |
Max. Discharge Head (m) |
10 |
10 |
30 | |
Max. Suction flow (m³/h) |
440 |
180 |
1235 | |
Vacuum/Discharge pump type |
side channel |
side channel |
lobe pump | |
Suction Inlet (mm) |
50 |
75/30 |
100 | |
Discharge Inlet (mm) |
50 |
50 |
100 | |
Standard Suction Hose Length (m) |
10 |
10 |
10 | |
Standard Discharge Hose Length (m) |
15 |
15 |
15 | |
Max. Suction Length (m) |
15 |
80 |
150 | |
Max, Discharge Length (m) |
30 |
50 |
150 | |
Dimensions (mm) |
1400x1100x1550 |
1800x1400x1750 |
2500x1800x1850 | |
Weight (kg) |
550 |
620 |
1400 |
Uses of the Vactran Liquid and Sludge Removal System
The Vactran is suitable for a variety of industrial sectors:
- Construction and civil infrastructure
- Oil & Gas operations
- Municipal and industrial cleaning
- Wastewater Management
- Food & Pharma
- Mining & Environmental
- Chemical & Petrochemical
- Agriculture
- Marine
Continuous Suction and Discharge Explained

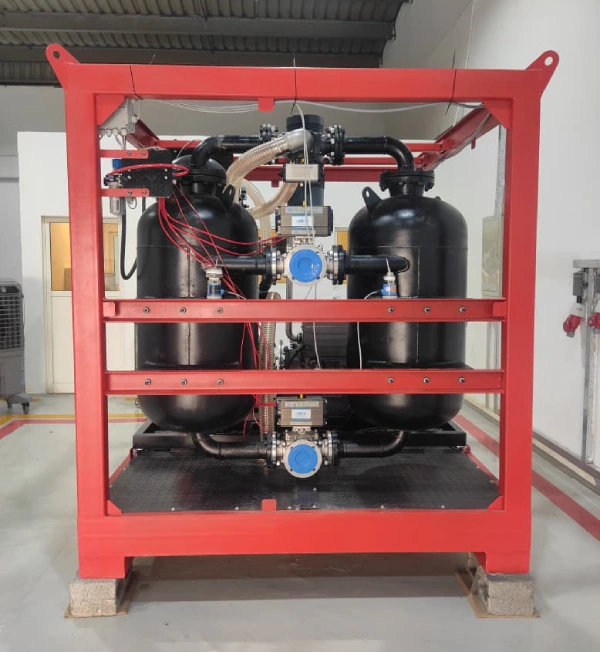

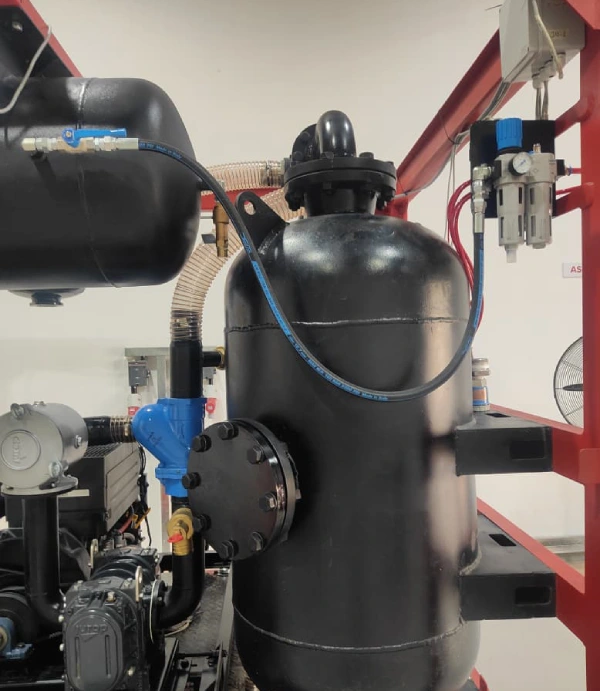

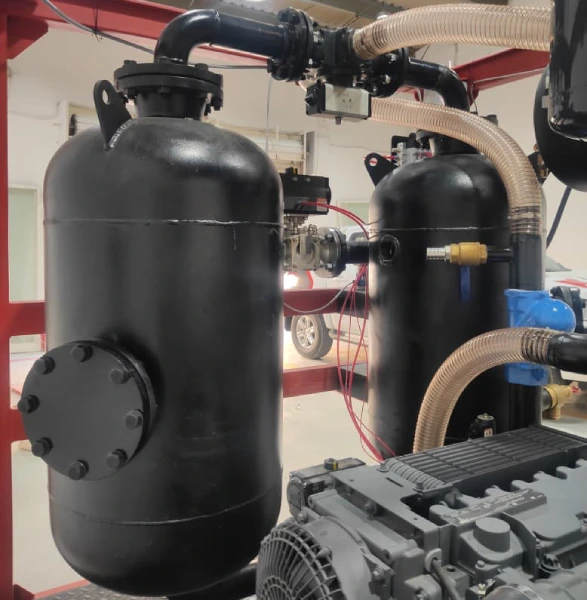

The Vactran system is built to function continuously, using a dual-chamber operation that completely eliminates any downtime. Traditionally, industrial vacuum systems are designed to operate in cycles.
Often, they are only capable of running for a period of time until they are full, at which point they will stop operating to discharge, either by toggling between drive modes or physically driving to dump.
Time is wasted, thereby negatively impacting productivity. With our Vactran truck, you can eliminate downtime associated with traditional operation. The Vactran truck will continuously transfer liquids from point A to point B with no interruption and no manual action, and it will perform continuously.
This means, operationally, there is no lost time and productivity, and there is certainly no downtime lost to transitioning between suction and discharge modes (again, fully continuous operation).
Continuous Suction and Discharge Explained
- Refineries
- Construction sites
- Wastewater facilities
- Industrial cleaning projects
Overall, this novel engineering design is what allows the Vactran system to rank among the exemplary heavy-duty vacuum systems on the market today; it is efficient, durable, and reliable for continuous load operations.
Vactran vs. Cyclevac: Selecting the Best Industrial Vacuum System
| Parameter | Vactran | Cyclevac |
|---|---|---|
Operation Type |
Continuous |
Cyclic |
Stop time |
None |
Moderate |
Best Suited For |
Large-scale, forward run projects |
Small or periodic projects |
Maintenance |
Low |
low |
Select Vactran for jobs that require continuous suction and discharge with exceptional efficiency. Not that both machines use the same components, and their maintenance requirements are nearly identical.

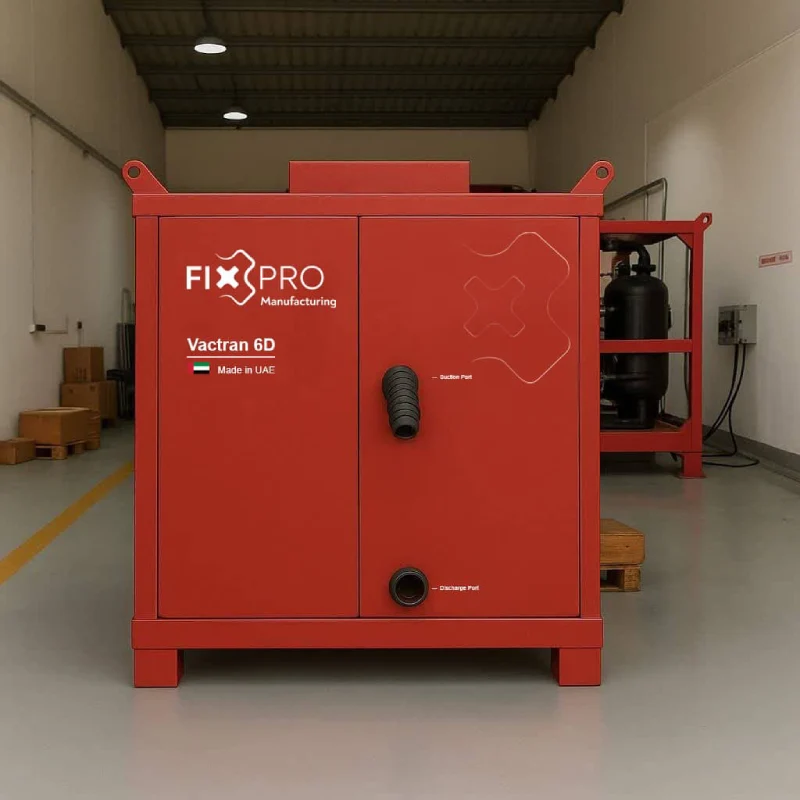

Vactran Models for Sale or Rental
- Vactran 6 – Best for medium-sized industrial jobs
- Vactran 8 – Built for heavy-duty and high-volume jobs
Available for sale or rental through FixPro. Please inquire about model details.
Maintenance, Repair, and Rental of Vactran Units
FixPro can provide full support on all Vactran Systems, including:
- Preventive maintenance and repair contracts
- Onsite work with a FixPro technician
- Rental available for short- or long-term use.
Explore Industrial Vacuum Solutions Across Applications
Discover how our industrial vacuum systems solve challenges in diverse industries.
Safe & continuous industrial waste extraction
Industrial Waste Removal with Vacuum Systems
Reliable vacuum solutions for sewage maintenance
Industrial Sewage Cleaning with Vacuum Systems
Efficient flood and stormwater cleanup
Flood & Storm Drain Cleaning Services
Request Expert Consultation
Elevate your operation like never before with FixPro’s Vactran Industrial Vacuum System.
Boost Productivity with the FixPro Vactran System
Ready to save time and cut downtime? Please complete this form to obtain a custom recommendation, a rental quote, or a maintenance plan from the FixPro team.
Do you have any question?
Yes, the Vactran system is engineered mainly for liquid and sludge removal.
Yes, FixPro offers service and parts availability through GCC and globally, with trained technicians ready to work at site or remotely.

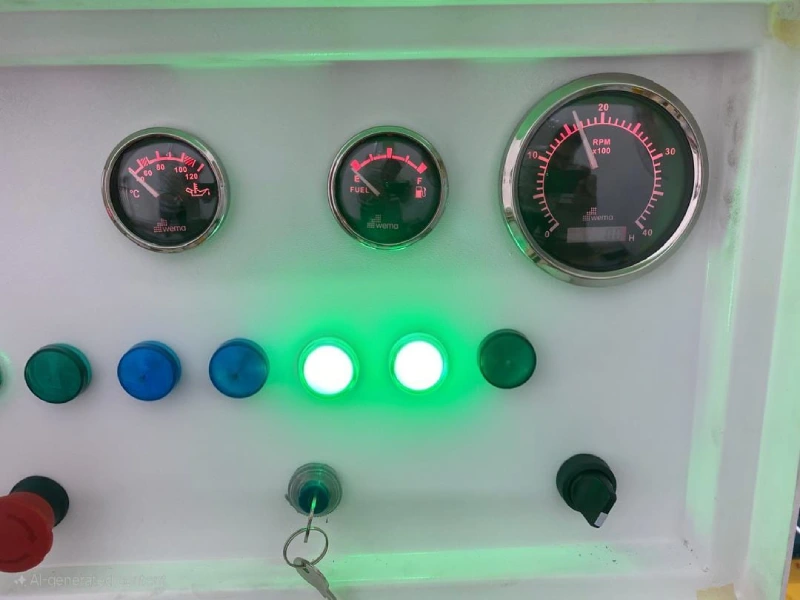

Every Vactran has integrated safety filters, pressure relief valves, and automatic shut-off mechanisms for operator protection and stable performance during extended use.
Yes, our team will customize every detail based on your operational requirements.
